X-Ray Powder Diffraction

X-ray powder diffraction (XRPD) enables rapid and non-destructive analyses of materials. A simple material identification can be performed by fingerprinting, using an algorithm that search-matches the measured pattern with the patterns deposited in a database. More challenging applications of XRPD include determination of unit cell parameters (indexing), structure determination, crystallinity and texture analyses, and thin-film characterization.

DECTRIS Hybrid Photon Counting (HPC) detectors have been successfully integrated into X-ray diffractometers by many OEM partners. These instruments are applied in a broad range of industrial and laboratory analyses such as high-throughput, in-field, residual stress, structure determination, and high-resolution reciprocal space mapping. In laboratory experiments, HPC detectors dramatically reduce measurement time without compromising data quality. Their outstanding data quality can even allow for unrestrained refinement in structure analysis with accuracy comparable to single-crystal data.

EIGER2 R 1M

  • Large active area of 77 by 88 mm for high-end 2D XRD
  • Dual energy discrimination to minimize background
  • Direct detection and small pixels for highest resolutions
  • High dynamic range with more than 4 billion counts per pixel
  • Service-free solid state detector

Read more

EIGER2 R 500K

  • Small pixels and versatile active area
  • Direct detection for high resolution
  • Dual energy discrimination to minimize background
  • Service-free solid state detector

Read more

EIGER R 1M

  • Active area of 77 by 80 mm for high-end 2D XRD
  • Direct detection and small pixels for highest resolutions
  • High dynamic range with more than 4 billion counts per pixel
  • Service-free solid state detector

Read more

PILATUS3 R CdTe 300K

  • CdTe sensor provides high efficiency for in-situ and PDF measurements
  • Service-free, minimal maintanance, proven reliabiltiy
  • Direct detection for high resolution
  • High dynamic range with more than 1 million counts per pixel

Read more

PILATUS3 R 300K

  • Active area of 84 by 107 mm for high-end 2D XRD
  • Service-free, minimal maintanance, proven reliabiltiy
  • Direct detection for high resolution
  • High dynamic range with more than 1 million counts per pixel

Read more

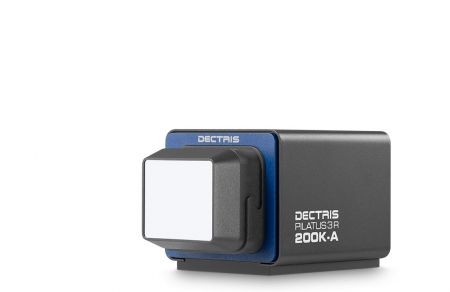

PILATUS3 R 200K-A

  • Active area of 84 by 70 mm for advanced 2D XRD
  • Service- and maintanence free, proven reliabiltiy
  • Direct detection for high resolution
  • High dynamic range with more than 1 million counts per pixel

Read more

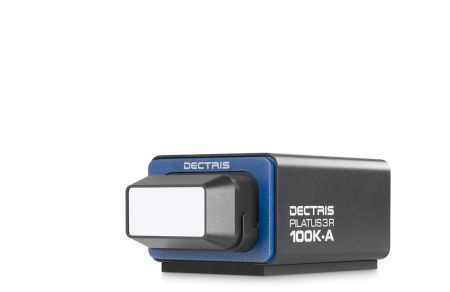

PILATUS3 R 100K-A

  • Economical HPC detector with versatile active area
  • Service- and maintanence free, proven reliabiltiy
  • Direct detection for high resolution
  • High dynamic range with more than 1 million counts per pixel

Read more

PILATUS3 R 100K-M

  • Compact and lightweight 0.9 kg detector head ideal to position freely
  • Optionally vacuum compatible to 10⁶ mbar and with removable window
  • High dynamic range with more than 1 million counts per pixel
  • Service- and maintenance free, proven reliability

Read more

MYTHEN2 R 1D

  • 640 strips in a highly economical HPC detector
  • Direct detection in 50 µm strips for highest resolution
  • HPC technology for low noise and high sensitivity
  • Service- and maintanence free, proven reliabiltiy

Read more

MYTHEN2 R 1K

  • 1280 strips over 64 mm for wide q-coverage
  • Direct detection in 50 µm strips for highest resolution
  • HPC technology for low noise and high sensitivity
  • Service- and maintanence free, proven reliabiltiy

Read more
