Small-Angle X-Ray Scattering (SAXS)

DECTRIS Hybrid Photon Counting (HPC) detectors are ideally suited to small-angle X-ray scattering (SAXS) laboratory instrumentation due to their high dynamic range, absence of readout noise and dark current, high sensitivity, and superior stability. Measuring extremely weak signals at high q-ranges requires long exposure times. With the complete absence of dark current, DECTRIS HPC detectors excel in delivering superior data for long exposure times. Thanks to high count rates, wide dynamic range, and a sharp point-spread function, strong and weak signals can be measured simultaneously and in close proximity.

Another advantage of DECTRIS HPC detectors in the laboratory: their high detection stability allows for the determination and subtraction of solvent scattering with superior accuracy — even for long exposure times. This exceptional stability results from single-photon counting in hybrid pixel technology and simple, yet highly stable water-cooling.

EIGER2 R 4M

  • Huge active area for widest q-coverage
  • Dual energy discrimination to minimize background
  • No dark current for better data from long exposures
  • Direct detection and small pixels for high angular resolution
  • High dynamic range with more than 4 billion counts per pixel

Read more

EIGER2 R 1M

  • 1 million hybrid pixels provide great versatility
  • Dual energy discrimination to minimize background
  • No dark current for better data from long exposures
  • Direct detection and small pixels for high angular resolution
  • High dynamic range with more than 4 billion counts per pixel

Read more

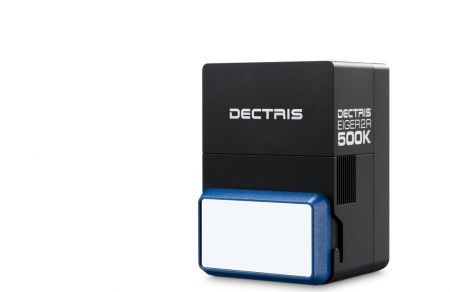

EIGER2 R 500K

  • Dual energy discrimination to minimize background
  • High count rates to match the brightest sources
  • High dynamic range with more than 4 billion counts per pixel
  • Half a million 75 µm pixels for high-resolution WAXS and SAXS

Read more

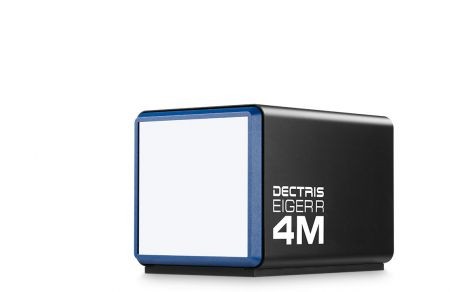

EIGER R 4M

  • Huge active area for widest q-coverage
  • High count rates to match the brightest sources
  • Direct detection and small pixels for high resolution
  • High dynamic range with more than 4 billion counts per pixel
  • Service-free solid state detector

Read more

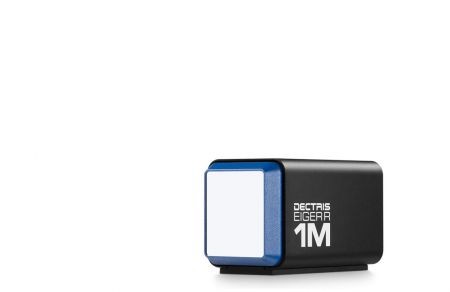

EIGER R 1M

  • High count rates to match the brightest sources
  • Direct detection and small pixels for high resolution
  • High dynamic range with more than 4 billion counts per pixel
  • Service-free solid state detector

Read more

PILATUS3 R 1M

  • Huge active area for widest q-coverage
  • High count rates to match the brightest sources
  • High dynamic range with more than 1 million counts per pixel
  • Service-free solid state detector

Read more

PILATUS3 R 300K-W

  • Wide geometry for WAXS or isotropic scattering
  • High count rates to match the brightest sources
  • High dynamic range with more than 1 million counts per pixel
  • Service-free solid state detector

Read more

PILATUS3 R 300K

  • Large active area for wide q-coverage
  • High count rates to match the brightest sources
  • High dynamic range with more than 1 million counts per pixel
  • Service-free solid state detector

Read more

PILATUS3 R 100K-M

  • Compact and light weight detector head ideal as WAXS detector
  • Optionally vacuum compatible to 10-6 mbar and with removable window
  • High dynamic range with more than 1 million counts per pixel
  • Service-free solid state detector

Read more

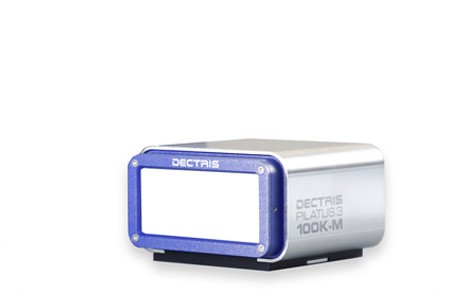

PILATUS3 R CdTe 100K-M

  • Efficiency of 95% for Mo, Ag, In sources
  • Detection area 83.8 x 33.5 mm2
  • Compact and lightweight detector head
  • Ideal as WAXS detector
  • Optionally vacuum compatible to 10-6 mbar



Read more

MYTHEN2 R 1D

  • 640 strips in a highly economical HPC detector
  • Direct detection in 50 µm strips for highest resolution
  • HPC technology for low noise and high sensitivity
  • Service- and maintanence free, proven reliabiltiy

Read more

MYTHEN2 R 1K

  • 1280 strips over 64 mm for wide q-coverage
  • Direct detection in 50 µm strips for highest resolution
  • HPC technology for low noise and high sensitivity
  • Service- and maintanence free, proven reliabiltiy

Read more
