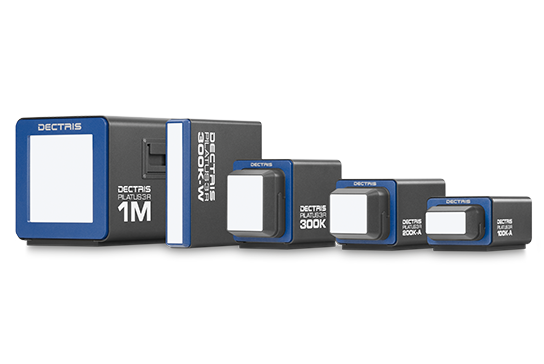

PILATUS3 R for Laboratories

Noise-free, easy-to-integrate PILATUS3 R X-ray detectors will bring synchrotron-quality detection to your in-house instrument.

Contact us

Designed for your needs in the laboratory, DECTRIS PILATUS3® R single-photon-counting X-ray detectors offer synchrotron-proven technology at an extremely high value. These noise-free, 172-µm-pixel detectors operate at a count rate of up to 107 ph/s/pixel and deliver superior-quality data in a shorter time, even when dealing with high-intensity signals. Additionally, the absence of readout noise and dark current is of a particular advantage when collecting data from weak signals with longer exposure times.

  • Easy to operate: these detectors feature simplified readout electronics for smoother integration and are operational at room temperature.
  • Versatile: the detectors come in many sizes and geometries, with different sensor materials and optional vacuum compatibility.
  • Reliable: detector performance is always stable. Delivery terms are guaranteed, thanks to streamlined industrial production and top-notch support.

Detectors

PILATUS3 R 1M

PILATUS3 R 1M

Featuring an active area of 16.9 x 17.9 cm2, this detector is a great choice for everyone who needs a large area and noise-free detection.

PILATUS3 R 300K

PILATUS3 R 300K

From the absence of detector dark current and readout noise to its large active area and many other advantages, this detector offers the perfect set of features for SAXS and single-crystal diffraction.

PILATUS3 R 300K-W

PILATUS3 R 300K-W

This detector’s wide, rectangular area makes it great for WAXS, 2D texture analysis, and powder diffraction.

PILATUS3 R 200K-A

PILATUS3 R 200K-A

This is a highly versatile detector for a wide range of X-ray applications. It has an excellent reputation of boosting efficiency and data quality in many crystallography labs.

PILATUS3 R 100K-A

PILATUS3 R 100K-A

All the advantages of hybrid-pixel technology are packed into an easy-to-use and service- and maintenance-free detector system.

PILATUS3 R 100K-M

PILATUS3 R 100K-M

The compact and lightweight detector head easily fits into laboratory setups. It can also be operated in vacuum and without its entrance window.

Detector Specifications*

PILATUS3 R 1M PILATUS3 R 300K PILATUS3 R 300K-W PILATUS3 R 200K-A PILATUS3 R 100K-A PILATUS3 R 100K-M

Active area (W x H)

[

mm²

]

168.7 x 179.4

83.8 x 106.5

253.7 x 33.5

83.8 x 70.0

83.8 x 33.5

83.8 x 33.5

Pixel array (W x H)

981 x 1,043

487 x 619

1,475 x 195

487 x 407

487 x  195

487 x  195

Pixel size (W x H)

[

µm²

]

172 x 172

172 x 172

172 x 172

172 x 172

172 x 172

172 x 172

Inter-module gap (Hor./Vert.)

[

pixels

]

7 / 17

- / 17

7 / -

- / 17

- / -

- / -

Count rate (max.)

[

ph/s/pixel

]

107

107

107

107

107

107

Energy range

[

keV

]

4.5 - 36

4.5 - 36

4.5 - 36

5.4 - 36

5.4 - 36

4.5 - 36

Frame rate (max.)

[

Hz

]

5

20

20

30

20

20

Readout time

[

ms

]

7

7

7

7

7

7

Sensor material

Silicon (Si)

Silicon (Si)

Silicon (Si)

Silicon (Si)

Silicon (Si)

Silicon (Si)

Sensor thickness

[

µm

]

450 or 1,000

450 or 1,000

450 or 1,000

450 or 1,000

450 or 1,000

450 or 1,000

Point-spread function (FWHM)

[

pixels

]

1

1

1

1

1

1

Vacuum compatibility

Contact us

Optional

Optional

Not applicable

Not applicable

Optional

Dimensions (W x H x D)

[

mm³

]

265 x 286 x 455

158 x 193 x 262

280 x 62 x 296

156 x 115 x 284

156 x 115 x 284

114 x 69 x 118 (Detector head)

Weight

[

kg

]

25

7.5

7

5.4

4.5

0.9 (Detector head)

Cooling method

Water

Water

Water

Air

Air

Water (Detector head)

PDF

Full specifications

Full specifications

Full specifications

Full specifications

Full specifications

Full specifiations

*All specifications are subject to change without notice.
