DECTRIS EIGER2® photon-counting detectors combine a small pixel size of 75 µm, a high speed, and active detector areas that range from very compact to extremely large. With a count-rate capability of 107 ph/s/pixel and DECTRIS Instant Retrigger® technology, these detectors help researchers take full advantage of the increasing beamline photon fluxes.
EIGER2’s robustness and optional vacuum capability, combined with excellent support and continuous development, make it the most future-proof detector for contemporary beamlines.
- Fast: EIGER2 detectors offer continuous readout, along with an extremely high frame rate.
- More & better data: our detectors have a large active area, two adjustable energy-discriminating thresholds, and a high count rate. There is no readout noise or dark current.
- Reliable: these detectors feature extremely stable performance and radiation hard design. Delivery terms are guaranteed, thanks to streamlined industrial production and top-notch support over the product’s entire lifetime.
Detectors
EIGER2 X/XE
As our fastest and largest X-ray detectors, EIGER2 X/XE hybrid-photon-counting detectors have been developed for the brightest 4th-generation synchrotron sources.
EIGER2 X/XE CdTe
Featuring the highest commercially available resolution and frame rate, our EIGER2 X/XE CdTe detector family has been developed for high-energy applications at synchrotron beamlines.
EIGER2 S
As our most affordable, latest-generation synchrotron detectors, EIGER2 S hybrid-photon-counting detectors offer beamlines an unbeatable price per pixel without sacrificing resolution.
Compare*
| EIGER2 X/XE | EIGER2 X/XE CdTe | EIGER2 S | |
| Frame rate (max.) [Hz] | up to 4,500 | up to 4,500 | up to 1,000 |
| External gating | Yes | Yes | No |
| Readout time [ms] | Continuous | Continuous | Continuous |
| Sensor material | Silicon (Si) | Cadmium telluride (CdTe) | Silicon (Si) |
| Energy range [keV] | 6 - 40 | 8 - 100 | 6 - 40 |
| View full specifications | View full specifications | View full specifications |
*All specifications are subject to change without notice.
Key Contact
Techniques
X-ray diffraction
Patterns with both weak and intense reflections are no challenge for the high dynamic range of DECTRIS strip detectors.
Read more
Scattering
Scattering techniques, such as SAXS/WAXS, greatly benefit from our detectors’ fast frame rates and outstanding signal-to-noise ratio.
Read more

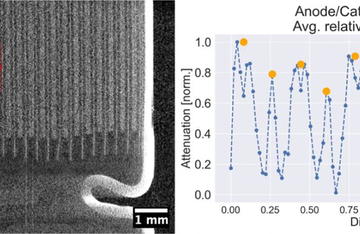

Imaging
The multiple thresholds of DECTRIS detectors enable spectral sensitivity for medical and industrial analytical instruments.
Read more
Spectroscopy
The combination of single-photon sensitivity with zero background noise enhances even the most advanced spectroscopic techniques.
Read more
Related News
Request a quote
To get more information for a tender or learn more about purchasing a DECTRIS EIGER2® X-ray detector for synchrotron beamlines, reach out to us
Request a quote for EIGER2 for synchrotrons
