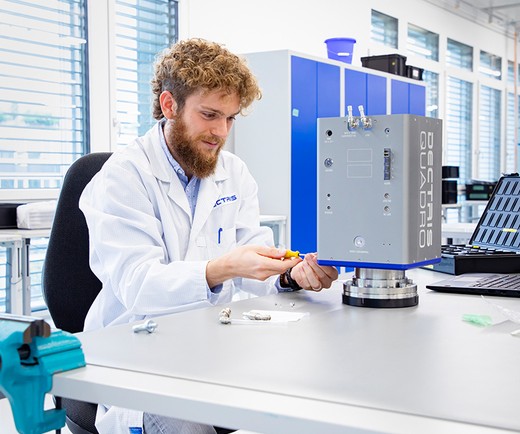

Based on hybrid-pixel technology, QUADRO is the first direct electron detector to be released by DECTRIS. It incorporates our signature instant retrigger, continuous readout, and noise-free acquisition. Even at high count rate (up to 10 million el/s/pix), DECTRIS QUADRO® detector is able to count every single electron, and thus assures more accurate data collection.

Thanks to QUADRO’s exceptionally high dynamic range, your experimental setup will no longer require a beam stopper, and this will allow you to obtain uninterrupted diffraction patterns. This characteristic, combined with QUADRO detector’s speed and sensitivity, make it a game-changer for techniques such as Micro-Electron Diffraction (microED), electron imaging, strain imaging, and ptychography.

Efficient: QUADRO detector’s fast readout chip, combined with its silicon sensor material, provides the ideal Detective Quantum Efficiency (DQE)—even at low energies.
Radiation-hard: QUADRO detector doesn’t require a beam stopper, and this will allow you to collect all data without interference.
Easy: QUADRO detector is compatible with SerialEM. Its Application Programming Interface (API) enables straightforward integration into any microscopy application suite.

Detector Specifications*

Number of pixels (W x H)	512 x 512
Active area (W x H) [ mm² ]	38.4 x 38.4
Pixel size (W x H) [ µm² ]	75 x 75
Sensor material	Silicon (Si)
Energy range [ keV ]	30 - 200
Frame rate (max.) [ Hz ]	2,250 (16-bit); 4,500 (8-bit)
Frame rate (ROI, max.) [ Hz ]	9,000 (16-bit); 18,000 (8-bit)
Count rate (max.) [ el/s/pixel ]	10⁷
Detective Quantum Efficiency, DQE(0)	0.9 at 100 kV, 0.8 at 200 kV
Detector mounting	Bottom-mounted, on-axis

*All specifications are subject to change without notice.
All technical documentation is available here.

QUADRO Technical Documentation

Key Contact

Luca Piazza

Product Manager - Electron Microscopy

E. luca.piazza@dectris.com

Brochure

User manual

Simplon API manual

ALBULA software

Integrated Solutions

Discover DECTRIS QUADRO® detector that is fully integrated into electron microscopy instruments.

ELDICO Scientific electron diffractometer

This dedicated electron diffractometer enables crystallographers to uncover important structural information faster, with better quality, and at a lower cost.

Find out more

NanoMegas’ TopSPIN Strain applications

TopSPIN Strain combines Precession Electron Diffraction (PED) with automated strain mapping and analysis of diffraction patterns by comparing unstrained and strained areas of the same crystalline sample.

Find out more

TESCAN TENSOR 4D STEM

TENSOR is a newly launched, fully-integrated, precession-assisted, analytical STEM. Its key capability is scanning diffraction imaging, which is enhanced – among other features – by the speed and sensitivity of a hybrid-pixel direct electron detector, DECTRIS QUADRO.

Find out more

Case Study

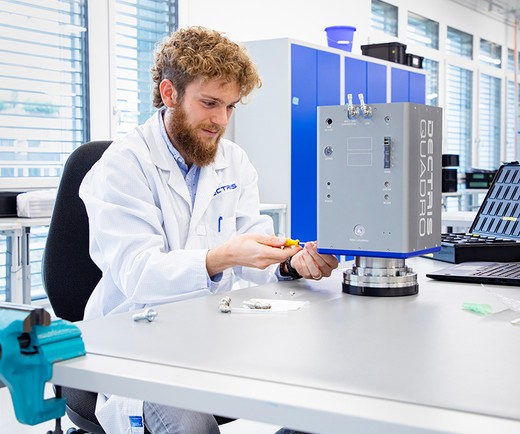

In his study, Dr. Tim Gruene investigated the prospects of electron diffraction for rapid structure identification using a hybrid-pixel electron detector.

Publication: Rapid Structure Determination of Microcrystalline Molecular Compounds Using Electron Diffraction, Angewandte Chemie, October 2018

Read the article

Techniques

Micro-Electron Diffraction (microED)

Acquire high-quality microED data fast using direct electron detection, combined with the high dynamic range and radiation hardness of DECTRIS’ electron detectors.
